Chameleon96™
A 96Boards Consumer Edition Single Board Computer Based on Intel® Cyclone® V SoC
A powerful dual-core processor combined with flexible 110K LE FPGA in a small form factor SBC makes possible any custom project that requires computing capability, video processing, connectivity and artificial intelligence blocks.
"Chameleon | cha - me - leon | : able to change how it presents itself to the world by adapting to the environment."

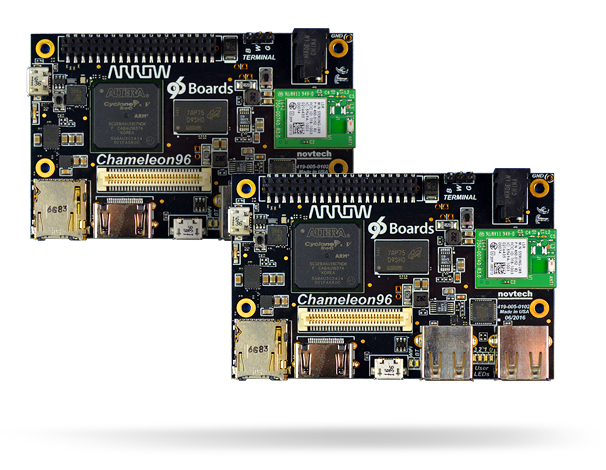

The Chameleon96™ board, based on Intel® Cyclone® V SoC FPGA, is a member of 96Boards community and complies with Consumer Edition board specifications. The Chameleon96™ meets all 96Boards mandatory specifications (excluding MIPI SDI Interface) and most optional specifications. The Chameleon96™ features Dual Arm® Cortex®-A9 processors and a set of peripherals allow direct interfacing and connecting to MMC/SD card, HDMI out, USB, WLAN and BLE. Two expansion connectors provide additional interfaces to cameras, USB, UARTs, I2C, SPI and GPIOs. The use of the FPGA fabric for the video processing allows development of custom IPU/GPU/VPU solutions on this platform.
Features
- 96Boards Consumer Edition form-factor
- All Consumer Edition mandatory specifications (excluding MIPI SDI Interface)
- Most optional specifications
- Intel® Cyclone® V SoC FPGA
- Dual-Core Arm® Cortex®-A9
- 110K Logic Elements FPGA fabric
- 512MB DDR3L (support up to 1GB)
- Graphics based on Intel® Video Suite for FPGA
- 1080p@60fps HD video through a HDMI
- MIPI CSI interface (Mobile Industry Processor Interface - Camera Serial Interface) 2x lane
- WLAN 802.11 b/g/n 2.4GHz
- Bluetooth 4.1
- One USB 2.0 OTG micro AB and two USB 2.0
- Power-in range +5V to +42V DC (exceeding 96Boards Specifications) achieved by using Power by Linear Technology™
- Expandability
- One 40-pin Low Speed (LS) connector (UART x2, SPI, I2S, I2C x2, GPIO x12 and DC Power)
- One 60-pin High Speed (HS) connector (SDHC/SDIO, 2L-MIPI DSI, 2L-MIPI CSI, I2C, USB 2.0 HOST & USB 2.0 HOST HSIC)
- Expandable using 96Boards mezzanine boards
- Can be made compatible with Arduino using an add-on card
Kit Contents
- Chameleon96™
- SD card with Linux image
- +12V Power Supply
- UART to USB cable
- MicroUSB cable for on-board Blaster II
- Quick Start Guide
Design Resources
- Schematic
- BoM
- Assembly Drawings
- HDL and SPL design files/sources
- Linux Virtual Machine with all sources and tool-chain
- SVN server for latest code updates
For an access to the board portal register your board here.
Support Resources
- Product Brief
- User Manual
- Software Manual
- Network Setup Manual
- Arrow support
- NovTech Support
For an access to these documents please register your board here.
Ordering Information
Chameleon96™ can be ordered from Arrow.
