Chameleon96™-Vision

Intel® Cyclone® V based 96Boards with Basler® Industrial LVDS Camera for Computer Vision.

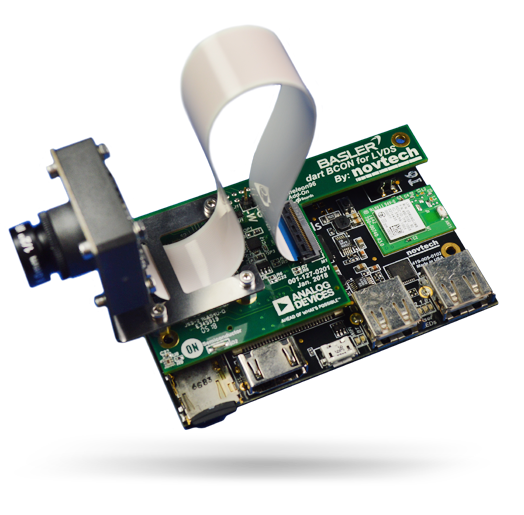

Equipped with an 110K LE FPGA with a Dual-Core Arm® Cortex® A9 and an Industrial LVDS Camera, Chameleon96™-Vision is a credit-card sized computer board that has the computing capability for real-time image processing and embedded vision algorithms. The Vision add-on board features an 5MP LVDS interface industrial camera with an ambient light sensor and ‘mobile phone’ type 3X accelerometer. The -3X version features a high-end 3X accelerometer and 3X gyroscope (only with the -3X version). The Chameleon96™ meets all 96Boards mandatory specifications (excluding MIPI SDI Interface) and most optional specifications. The Chameleon96™ features Dual Arm® Cortex®-A9 processors, an FPGA fabric, and a set of peripherals that allow direct interfacing and connecting to MMC/SD card, HDMI out, USB, WLAN/BLE, I2Cs, UARTs, SPIs and GPIOs.

Features

  • Chameleon96™ board
    • Intel® Cyclone® V SoC FPGA
    • Dual-Core Arm® Cortex®-A9
    • 110K Logic Elements FPGA fabric
  • Memory/Storage
    • 512MB DDR3L (support to 1GB)
    • 4 to 64 GByte microSD
  • Video Out
    • Graphics based on Intel® Video Suite for FPGA
    • Up to 1080p@60fps HD video through a HDMI interface
  • Audio
    • HDMI Audio
    • Bluetooth Audio
  • Connectivity
    • WLAN 802.11 b/g/n 2.4GHz
    • Bluetooth 4.1
    • One USB 2.0 OTG micro AB 1
    • Two USB 2.0 HOST
    • Integrated USB-Blaster II JTAG cable
  • 3-Axis ±2 g/±4 g/±8 g/±16 g Digital Accelerometer
  • Ultra-low noise, dual-axis MEMS Gyroscope for Stabilization Applications (ADXR290) 2
  • Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer 2

1 Based on the DIP switch selection, USB operates as a single OTG port or three USB host ports.
2 Only available on the Chameleon96-Vision_001-130-0102-3X_KIT version

Customization Services

Chameleon96™-Vision is meant for pre-production purposes and can be used for proof-of-concept testing. NovTech can help with customized production-ready systems with the following services:

  • Custom baseboard design or a single board solution
  • Enhance HDL
  • Optimize Linux drivers and software
  • Operational mode usage of crypto function for running a secure application
  • Customize enclosure to match environmental requirements
  • Help with regulatory requirements

NovTech provides services that assist in achieving these tasks.

Applications

  • Industrial & Manufacturing
  • Machinery
  • Robotics
  • Artificial Intelligence

Kit Contents

  • Chameleon96™
  • Add-on card with Basler LVDS camera and accelerometers
  • SD card with Linux image
  • +12V Power Supply
  • UART to USB cable
  • MicroUSB cable for on-board Blaster II
  • Quick Start Guide

Design Resources

  • Schematic
  • BoM
  • Assembly Drawings
  • HDL and SPL design files/sources
  • Linux Virtual Machine with all sources and tool-chain
  • SVN server for latest code updates

Support Resources

Ordering Information

Chameleon96™ can be ordered from Arrow.
Contact NovTech for customization services.

Equipped with an 110K LE FPGA with a Dual-Core Arm® Cortex®-A9 and an Industrial LVDS Camera, Chameleon96™-Vision is a credit-card sized computer board that has the computing capability for real-time image processing and embedded vision algorithms. The Vision add-on board features an 5MP LVDS interface industrial camera with an ambient light sensor and ‘mobile phone’ type 3X accelerometer. The -3X version features a high-end 3X accelerometer and 3X gyroscope (only with the -3X version). The Chameleon96™ meets all 96Boards mandatory specifications (excluding MIPI SDI Interface) and most optional specifications. The Chameleon96™ features Dual Arm® Cortex®-A9 processors, an FPGA fabric, and a set of peripherals that allow direct interfacing and connecting to MMC/SD card, HDMI out, USB, WLAN/BLE, I2Cs, UARTs, SPIs and GPIOs.

  • Chameleon96™ board
    • Intel® Cyclone® V SoC FPGA
    • Dual-Core Arm® Cortex®-A9
    • 110K Logic Elements FPGA fabric
  • Memory/Storage
    • 512MB DDR3L (support to 1GB)
    • 4 to 64 GByte microSD
  • Video Out
    • Graphics based on Intel® Video Suite for FPGA
    • Up to 1080p@60fps HD video through a HDMI interface
  • Audio
    • HDMI Audio
    • Bluetooth Audio
  • Connectivity
    • WLAN 802.11 b/g/n 2.4GHz
    • Bluetooth 4.1
    • One USB 2.0 OTG micro AB 1
    • Two USB 2.0 HOST
    • Integrated USB-Blaster II JTAG cable
  • 3-Axis ±2 g/±4 g/±8 g/±16 g Digital Accelerometer
  • Ultra-low noise, dual-axis MEMS Gyroscope for Stabilization Applications (ADXR290) 2
  • Low Noise, Low Drift, Low Power, 3-Axis MEMS Accelerometer 2

1 Based on the DIP switch selection, USB operates as a single OTG port or three USB host ports.
2 Only available on the Chameleon96-Vision_001-130-0102-3X_KIT version

Chameleon96™-Vision is meant for pre-production purposes and can be used for proof-of-concept testing. NovTech can help with customized production-ready systems with the following services:

  • Custom baseboard design or a single board solution
  • Enhance HDL
  • Optimize Linux drivers and software
  • Operational mode usage of crypto function for running a secure application
  • Customize enclosure to match environmental requirements
  • Help with regulatory requirements

NovTech provides services that assist in achieving these tasks.

  • Industrial & Manufacturing
  • Machinery
  • Robotics
  • Artificial Intelligence
