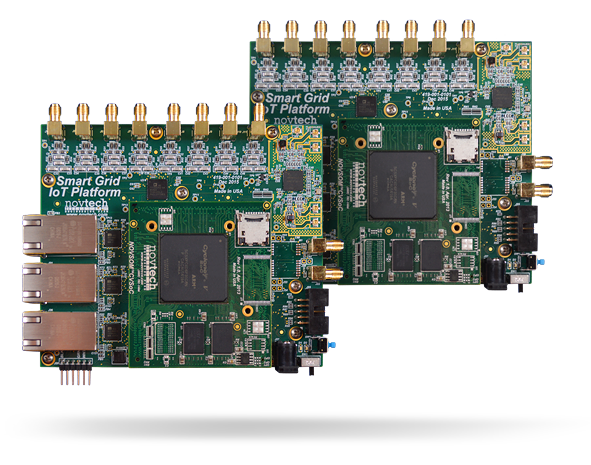

IoTOctopus®
Equipped with a 110K LE FPGA with Dual-Core Arm® Cortex®-A9 and an 8-channel 24-bit Sigma-Delta ADC, the IoTOctopus® can do complex computing and data analysis in real time.
Electro-mechanical systems such as drilling pumps, hydro-electric turbines and electric grids form the basis of many industrial applications. Smooth and reliable functioning of these systems is critical to ensuring cost-effective production and sometimes even environmental and human safety. The IoTOctopus® is built for such applications where accurate data interpretation of electro-mechanical devices is paramount. With its simultaneous 8-channel, 24-bit Sigma-Delta, 32 KHz sample rate ADC and an on-board Intel® Cyclone® V SoC, a dual-core Arm® Cortex®-A9 and 110K LE fabric, the IoTOctopus® converts analog signals to digital data, rearranges, analyzes, stores and transmits data to gateways/local servers/cloud servers in real time. GPS based synchronization ensures a fool-proof mechanism for multi-channel alignment. With a dedicated security chip, the IoTOctopus® provides several layers of security including authentication, protected storage, secure updates, secure boot, memory integrity, and protection against tampering and physical attacks.
- Simultaneous 8-channel, 24-bit, 32 KHz sampling sigma-delta ADC (Analog Devices’ AD7770)
- Intel® Cyclone® V SoC with 110K LEs
- 1 PPS GPS source for multi-nodes sampling synchronization
- Wired Connectivity:
- One 1G/100/10 Ethernet PHY connected to HPS
- Two 1G/100/10 Ethernet PHY connected to FPGA
- Wireless Connectivity:
- 802.11, ZigBee
- 802.15.4
- 900 MHz-Long Range
- Mesh Network
- GPS
- RTC (Real Time Clock with battery backup
- Embedded Security with Infineon's Optiga™ Trust P (SLJ 52ACA150A1)
- Secure boot
- Device authentication
- Secure firmware upgrades
- Protected storage of credentials and configuration
- 30 HPS signals can be configured as:
- HPS GPIO
- FPGA I/O signals
- CAN BUS x2
- Additional UART
- SPI
- 30 FPGA signals that can be configured as:
- FPGA I/O signals
- HPS signals
- One global clock output
IoTOctopus® uses Infineon's OPTIGA™ Trust P (SLJ 52ACA150A1) to achieve the following system security features:
- Protected storage of credentials and device configuration information
- Secure boot of the system
- Device authentication to the network
- Secure update of the device firmware and configuration
- Secure communication channel for data exchange over the network
IoTOctopus® is meant for pre-production purposes and can be used for proof-of-concept testing. NovTech can help with customized production-ready systems with the following services:
- Optimize Linux drivers and software
- Operational mode usage of crypto function for running a secure application
- Customize enclosure to match environmental requirements
- Help with regulatory requirements
NovTech provides services that assist in achieving these tasks.
- Industrial & Manufacturing
- Defense
- Agriculture
- Automotive
- Energy
- Transportation
- Utilities
- Mining
- Smart Grid
- Smart City
- Motor Monitor/Control
- Engine Monitor/Control
- Pump Monitor/Control
- Turbine, Elevator, A/C, Power generator, Industrial battery charging and other electro-mechanical equipment
- Hardware
- NOVSOM®CV Module (PN: NOVSOMCV6FE28SLQ31E)
- IoTOctopus® Baseboard
- Power Supply
- UART TTL to USB cable
- Software and Documentation
- SD card with Linux image and example code
- Quick Start Guide
- Link to the portal with manuals, documentation, virtual machine and tools
- IoTOctopus® can be ordered from Arrow
- PN: IoTOctopus_001-125-0102_KIT
- For pre-production orders please contact Sales at NovTech
