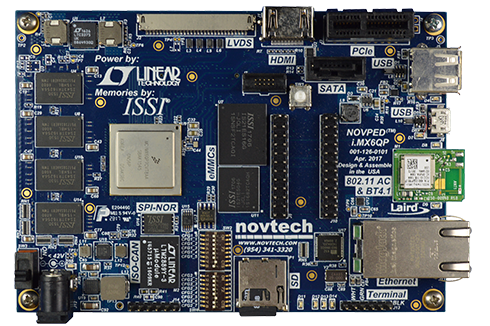

NOVPED™i.MX6QP

Power-Efficient Automotive and Industrial Grade Single Board Computer Based on NXP® i.MX 6QuadPlus Processor

Based on the highest performing member of the NXP® i.MX 6 Series Application Processors, the NOVPED™i.MX6QP is a single board computer (SBC) with 4GB DDR, large capacity on-board solid-state storage and a wide range of peripherals. The SBC, which features a high-performance ADI Power by Linear™ power solution, can be powered from a single cell Li-Ion battery (+3.7V) to +42V DC, covering typical industrial/automotive power rails of 5V, 12V, 24V, 28V, 32V and 36V. Synchronizing all the on-board switching power supplies and setting the SoC to operate at ‘external bypass mode’ contributes to the design’s overall power efficiency and leads to better EMI performance.

Features

  • NXP® i.MX 6QuadPlus
    • Quad-Core Arm® Cortex®-A9 processor running at 1.2 GHz
  • Most efficient power consumption implementation of i.MX 6QP, with a wide Vin range of +3.7 to +42V DC
  • Boot support from four different on-board devices
    • µSD
    • SPI-NOR
    • eMMC1
    • eMMC2
  • Secondary and Recovery boot
  • 4GB DDR3L (the maximum size supported by the i.MX 6QP)
  • HDMI, LVDS, USBx2, PCIe, Ethernet, CAN, RTC and expansion ports
  • Automotive/industrial temperature grades
  • Flexible low-speed connector
    • 42 IOMUX signals that be configured as GPIO, CAN, I2C, or many other interfaces
  • High-speed HIROSE FXC8-60S-SV connector
    • MIPI CSI x4 lanes
    • MIPI DSI x2 lanes
    • MLB
    • GPIO and other interfaces

Customization Services

The NOVPED™i.MX6QP is meant for pre-production purposes and can be used for proof-of-concept testing. NovTech Design Services can help with customized production-ready systems with these services:

  • Assembly options to support customer needs to reduce board cost
  • Design modification, both schematic and PCB, to meet requirements of end-application
  • Customize power for a specific application, or adopt the existing power-efficient design in other i.MX 6QP designs
  • Linux drivers and software optimization
  • Enclosure customization to match environmental requirements

Kit Contents

  • Hardware
    • NOVPED™iMX6QP SBC
    • UART TTL to USB cable
    • Power Supply
  • Software and Documentation
    • SD card with Linux image and example code
    • Quick Start Guide
    • Link to the portal with manuals, documentation, virtual machine and tools

Design Resources

  • Schematic
  • Linux Virtual Machine with all sources and tool-chain
  • Git server for latest code updates

For an access to these documents please register your board.

Support Resources

For an access to these documents please register your board.

Ordering Information

NOVPED™i.MX6QP kit is available through arrow.com.
Part # is NOVPEDIMX6QP-001-126-0102_KIT.
