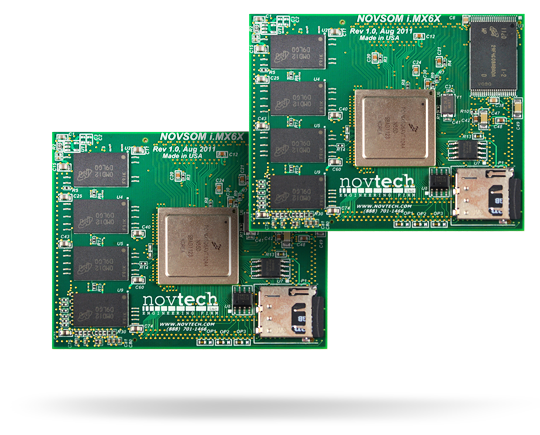

NOVSOM®i.MX6x

System on Module based on NXP® i.MX 6x with configurable options for DDR capacity and boot devices

NOVSOM®i.MX6x system on module (SoM) provides a quick way to build a NXP® i.MX 6x board. All users need to do is to design a four to six layers board with the required peripherals and the Board to Board (B2B) connectors to support the NOVSOM®i.MX6x. Apply power to your new board and see it booting. The NOVSOM®i.MX6 can be configured to meet your system requirements, DDR capacity and boot devices type and size.

Features

  • All i.MX6x variants supported
  • Up to 8 GB DDR3
    • On board Solid state storage/boot options
    • MicroSD
    • NAND FLASH
    • SPI serial FLASH
    • EEPROM
  • On-board clocks
  • All peripherals voltages are supported
  • Small form-factor, dimensions: 2.330" by 2.835"
  • Board to board height from 6mm to 16mm

Customization Services

NovTech Design Services can help with customized production-ready systems with the following services:

  • Custom baseboard design or a single board solution
  • Optimize Linux drivers and software
  • Customize enclosure to match environmental requirements
  • Help with regulatory requirements

Kit Contents

  • Hardware
    • NOVSOM®i.MX6x Module
  • Software and Documentation
    • SD card with Linux image and example code
    • Quick Start Guide
    • Link to the portal with manuals, documentation, virtual machine and tools
