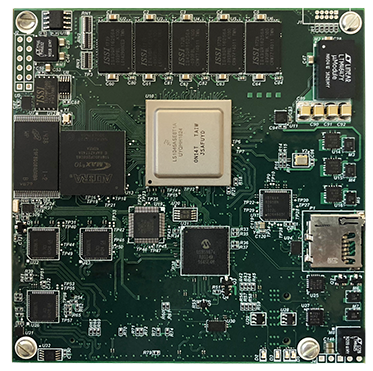

NOVSOM®COMeLS10xx

A COM Express® Type 7 in a Compact Form Factor based on NXP® QorlQ® Layerscape 1028/1046A Arm® SoC.

NOVSOM®COMe7LS10xx System‐On‐Module (SoM) complies with COM Express Type 7 specifications. It features NXP® QorlQ® Layerscape 1028/1046A SoC with integrated quad 64-bit Arm® Cortex®‐A72 cores with packet processing acceleration and eight high-speed channels. It brings to customers all the benefits of the SoC while accelerating the design of an application board by eliminating the need to develop the DDR interface, boot devices, clocks and power management solutions and interfaces PHYs. The use of NOVSOM®COMe7LS1046A provides users with a proven industry standard small form factor SoM allowing engineers to focus their design efforts on the required peripherals for their application.

Features

  • COM Express® Type 7 Compact form-factor module
  • NXP® QorlQ® Layerscape 1028/1046A SoC
    • Quad Arm® Cortex®-A72 cores
    • Eight SerDes channels
    • Networking and Crypto hardware offload
  • 64bit DDR4 with ECC (max 8GB)
  • 4x 10G KR + 3x 1G Ethernet, PCIe and SATA
  • Up to 6 USB 3.0 ports
  • eMMC up to 64GB
  • Supports secondary and recovery boot
  • Industrial temperature grade: -40°C to +85°C
  • Linux board support package (BSP) including NXP® Layerscape drivers for all Type 7 defined interfaces

Applications

  • Industry 4.0 Fog/Edge compute node
  • SDN/OpenFlow™ white box switching
  • Network function virtualization (NFV) solutions
  • Video Recorders, Surveillance
  • Wireless cell site routing
  • Security and Encryption

Target Markets

  • Industrial/Automation/Machinery
  • Networking/Servers
  • Transportation
  • Military

Customization Services

NovTech Design Services can help with customized production-ready systems with the following services:

  • Custom baseboard design or a single board solution
  • Optimize Linux drivers and software
  • Customize enclosure to match environmental requirements
  • Help with regulatory requirements

Kit Contents

  • Hardware
    • NOVSOM®COMeLS10xx Module
  • Software and Documentation
    • SD card with Linux image and example code
    • Quick Start Guide
    • Link to the portal with manuals, documentation, virtual machine and tools

Design Resources

  • Schematic
  • Assembly Drawings
  • Linux VM with all sources and tool-chain
  • Git server for latest code updates
  • Linux board support package (BSP) including NXP® Layerscape drivers for all Type 7 defined interfaces

Support Resources

Ordering Information

Contact NovTech for customization, pricing and availability.
