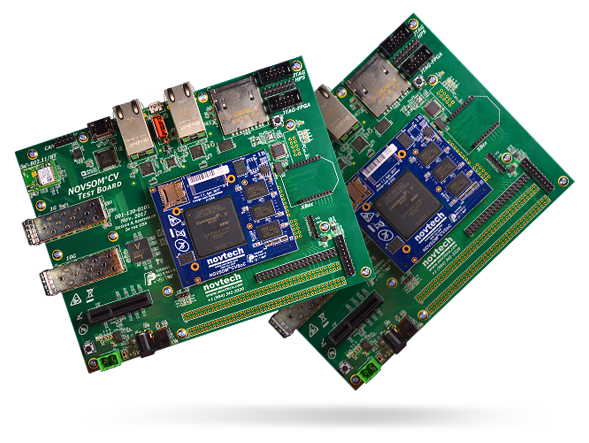

NOVPEK™CV

Comprehensive evaluation kit for Intel® Cyclone® V SoCs that provides an access to all I/Os and all types of HPS peripherals.

The NOVPEK™CV Platform Evaluation Kit includes the NOVSOM®CV System-On-Module (SoM) featuring the Intel® Cyclone® V SoC which combines the performance of a dual-core Arm® Cortex®-A9 processor with the flexibility of FPGA, providing the ultimate in system customization. NOVPEK™CV provides a comprehensive evaluation solution for system architects, board designers, BSP developers, application code writers and other members of an engineering team.

Features

  • NOVSOM®CV Module
    • Intel® Cyclone® V
  • An access to every type of Hard Processor System (HPS) peripheral
    • SD, UART, 1G Ethernet, USB OTG 2.0, CAN, etc
  • Multiple options for HPS boot, FPGA configuration and debugging
  • FPGA Bank 4 configured to support 10/100 IEEE1588 L2 SWITCH, USB 2.0 Host, USB 3.0 device (or host), and 8MB PSRAM
  • Multimedia support for HDMI, LVDS, RGB TTL, Composite, CMOS camera and Audio CODEC
  • Support for high-speed FPGA signals: PCIe X4 connector, MiniPCIe connector, PCIe to USB 3.0 Host bridge, SATA and HSMC
  • Every power rail of the SoC can be isolated and measured
  • Power module can be customized/scaled for the most demanding applications
  • Expansion connectors to add additional external peripherals to the board

Customization Services

NOVPEK™CV development board is meant for proof-of-concept testing. NovTech Design Services can help with customized production-ready systems with the following services:

  • Custom baseboard design or a single board solution
  • Enhance HDL
  • Optimize Linux drivers and software
  • Customize enclosure to match environmental requirements
  • Help with regulatory requirements

Kit Contents

  • Hardware
    • NOVSOM®CV Module
    • NOVPEK™CV Baseboard
    • Power Supply
    • UART TTL to USB cable
  • Software and Documentation
    • SD card with Linux image and example code
    • Quick Start Guide
    • Link to the portal with manuals, documentation, virtual machine and tools

Design Resources

  • Schematic
  • BoM
  • Assembly Drawings
  • GERBER files
  • HDL and SPL design files/sources
  • Linux VM with all sources and tool-chain
  • Git server for latest code updates
